C1020 plate

C1020 plate

Our inventory consists of C10100, C1020, ETP C110000, and C12200. Each of these pure coppers is used for multiple applications, because of their excellent electrical and thermal conductivity, outstanding corrosion resistance, and ease of fabrication, together with good strength and fatigue resistance

Thickness : 0.3-150MM

Length : ≤6000 MM

Width : 200-3000MM

MOQ : 1MT

Properties



牌号

process

规格(mm)

Thickness(mm)

Width(mm)

Length(mm)

C1020

Hot rolling

4~8

600-2000

≤5000

>8~60

200-3000

≤6000

>60~150

200-3000

≤6000

Cold rolling

0.3-0.5

≤600

≤2000

>0.5~3.0

≤1020

≤3000

>3.0-1.2

≤3000

 ≤6000

chemical Composition

Alloy

   Chemical  Composition ()



C1020

Cu+Ag(MIN)

P

Ag

Bi

Sb

As

Fe

Ni

Pb

Sn

S

Zn

o

99.97

0.002

0.001

0.002

0.002

0.004

0.002

0.003

0.002

0.004

0.003

0.002



Mechanical Properties

Alloy

Temper

Thickness(mm)

Rm/OViran2) Tensile Strength

A11.3/% Elongtion

 Hardness(Hv)



C1020

R

 4-14

Rm≥195Mpa

A11.3≥30%

-

.  14

-

-

-

M

>0.5

Rm≥205Mpa

A11.3≥30%

70

Y4

Rm=215~275Mpa

A11.3≥25%

 60-90

Y2

Rm=245~345Mpa

A11.3≥8%

 80-110

Y

Rm≥295~380Mpa

-

90-120

T

Rm≥350Mpa

-

 110





Features

>High electrical conductivity and durability

>High precision and low cost

>Narrow size tolerances

>Low-fat, smooth surface

>Concentrated materials composition

>High dimensional stability

>Mechannical and physical properties can be controlled

>Wide range of sizes and almost zero maintenance

>Excellent malleability, can beforged the broadest,thinnest and longest

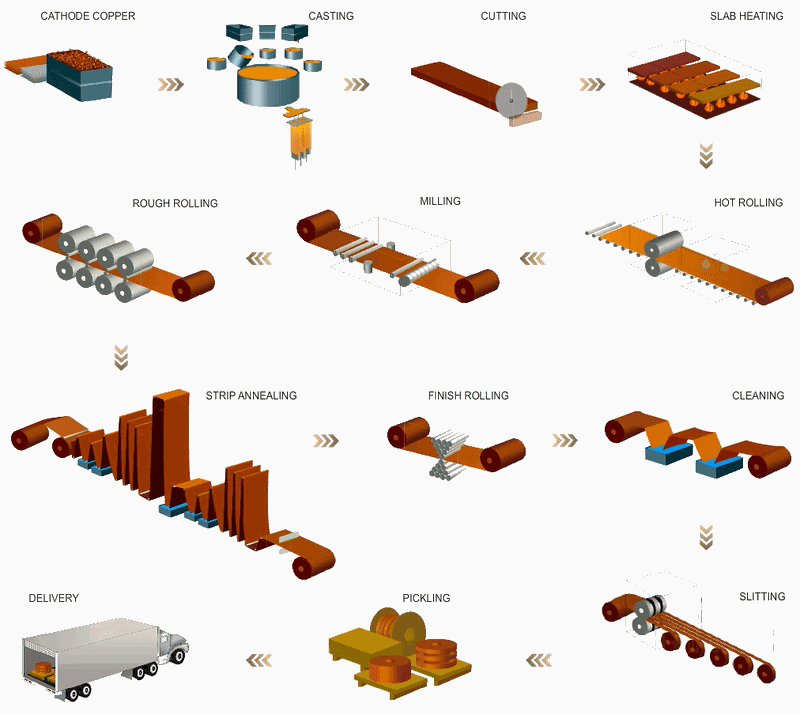

Thin plate/sheet

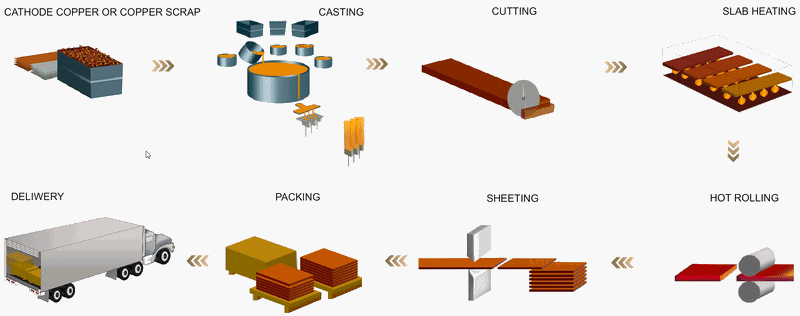

Thick plate/sheet





Typical Uses

Electronic and electrical industry,General hardware,Mechanical manufacturing,Household appliances,Automobile and new energy,Transportation,Metallurgical and chemical industry
