C12200 plate

C12200 plate

Our inventory consists of C10100, C10200, ETP C122000, and C12200. Each of these pure coppers is used for multiple applications, because of their excellent electrical and thermal conductivity, outstanding corrosion resistance, and ease of fabrication, together with good strength and fatigue resistance

Thickness : 0.05-150mm

Length : 20-3000mm

Width : ≤6000mm

MOQ : 1MT

Properties

1.Size





Alloy

process

size(mm)

Thickness(mm)

Width(mm)

Length(mm)

C12200

Hot rolling

4~8

600-2000

≤5000

>8~60

600-3000

≤6000

>60~150

600-2500

≤5000

Cold rolling

>0.5~3.0

≤1000

≤2500

>3.0-1.2

≤3000

≤6000

chemical Composition





Alloy

   Chemical  Composition (%)



C12200

Cu+Ag (MIN)

P

Ag

Bi

Sb

As

Fe

Ni

Pb

Sn

S

Zn

o

99.90

0.015-0.040

-

-

-

-

-

-

-

-

-

-

3) Mechanical Properties





Alloy

Temper

Thickness(mm)

Rm/OViran2) Tensile Strength

A11.3/% Elongtion

 Hardness(Hv)



C12200

R

 4-14

Rm≥195Mpa

A11.3≥30%

-

.  14

-

-

-

M

>0.5

Rm≥205Mpa

A11.3≥30%

≤70

Y4

Rm=215~275Mpa

A11.3≥25%

 60-90

Y2

Rm=245~345Mpa

A11.3≥8%

 80-110

Y

Rm≥295~380Mpa

-

90-120

T

Rm≥350Mpa

-

 ≥110









Features

>High electrical conductivity and durability

>High precision and low cost

>Narrow size tolerances

>Low-fat, smooth surface

>Concentrated materials composition

>High dimensional stability

>Mechannical and physical properties can be controlled

>Wide range of sizes and almost zero maintenance

>Excellent malleability, can beforged the broadest,thinnest and longest

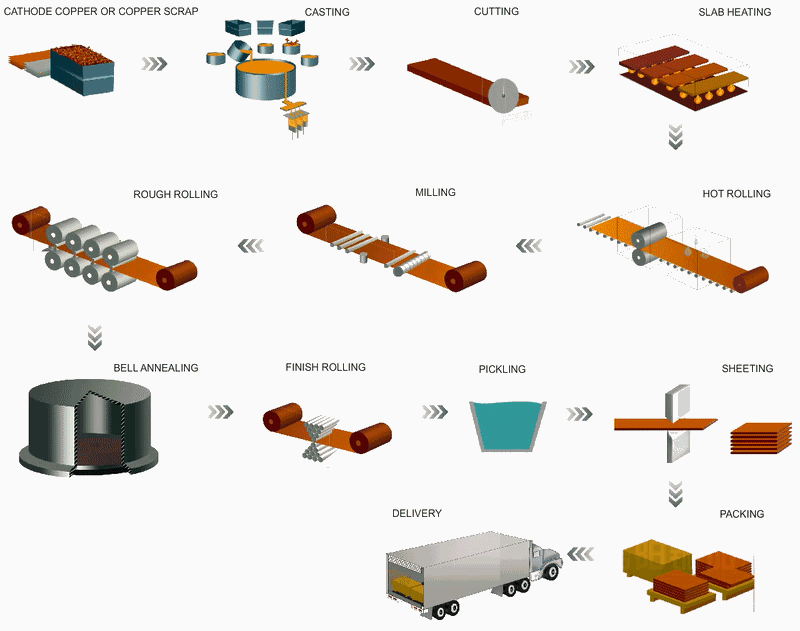

Thin plate

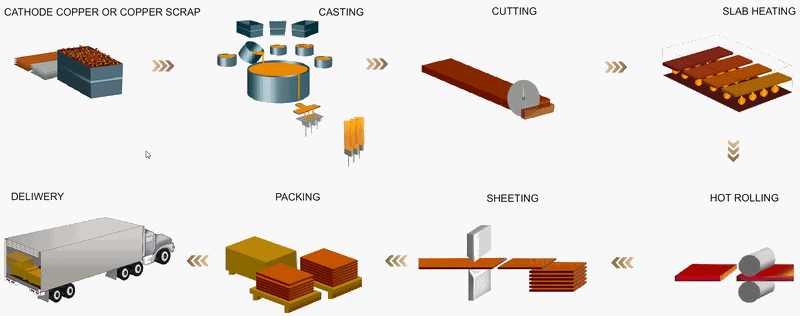

Thick plate



Typical Uses

electronic and comunication,Architectural decoration,Electronic and electrical industry,General hardware,Mechanical manufacturing,Household appliances,Automobile and new energy,Transportation,Metallurgical and chemical industry



Please contact one of our knowledgeable sales staff to help you with your Copper needs.
