C28000 pipe
Brass pipes have characteristics such as: light weight, good thermal conductivity, high strength at low temperatures.Brass pipes are rugged and resistant to corrosion
Length : 500～7000MM
OD : 10-300 MM
WT : 1-50 MM
MOQ : 1MT
Properties
|
Alloy |
product |
shape |
Temper |
Size |
||
|
OD. |
WT. |
Length (mm) |
||||
| C28000 |
Extruded pipes |
Round
|
R |
60～300 |
5～42.5 |
500～6000 |
|
135～140 |
45 |
500～2000 |
||||
|
145～200 |
45～50 |
500～2000 |
||||
|
205～260 |
45～50 |
500～1500 |
||||
|
265～300 |
45～50 |
500～1000 |
||||
|
Drawn pipes |
Round |
Y、Y2、M、M2 |
10～200 |
0.8～10 |
OD.≤100 L1000～7000 |
|
|
Y2、M |
38～200 |
10.5～17.5 |
||||
|
201～275 |
4～17.5 |
|||||
Chemical Composition
|
Alloy |
Chemical Composition (%) |
||||
|
Cu |
Fe |
Pb |
Zn |
Other Elements |
|
|
H62 |
60.5-63.5 |
0.15 |
0.08 |
Rem. |
0.5 |
|
C2801 |
59.0-62.0 |
0.07 |
0.1 |
Rem. |
- |
|
C28000 |
59.0-63.0 |
0.07 |
0.30 |
Rem. |
- |
|
Temper |
shape |
Diameter (or margin) |
Tensile Strength Rm/ (N/mm2) |
Elongation A/ % min |
HV |
HB |
|
M |
Round |
3~40 |
≥300 |
43 |
60~90 |
55~85 |
|
M2 |
40~80 |
≥360 |
25 |
75~110 |
70~105 |
|
|
Y2 |
3~20 |
≥370 |
18 |
85~120 |
80~115 |
|
|
Y |
20~80 |
≥440 |
- |
≥115 |
≥110 |
|
|
R |
Round |
≤42.6 |
≥295 |
43 |
- |
- |
Features
1) Light Weight
2) Good Thermal Conductivity
3) Low Temperature
4) High Strength
5) Hardness
6) Corrosion Resistance
7) High Temperature
8) Pressure Resistance

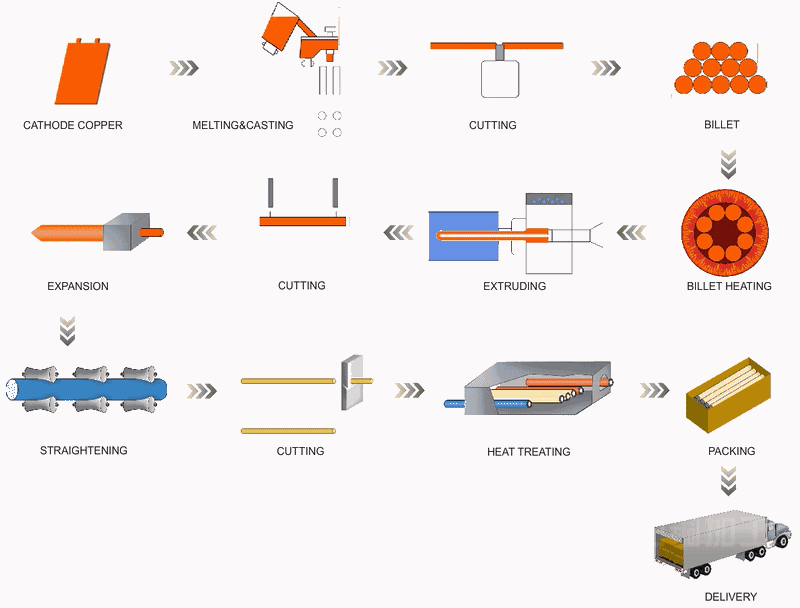

Extruded pipe/tube

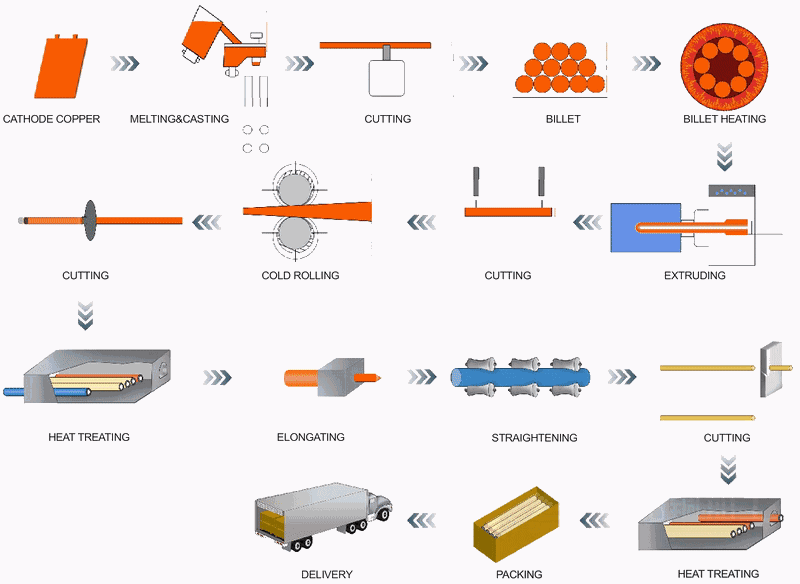

Drawn pipe/tube

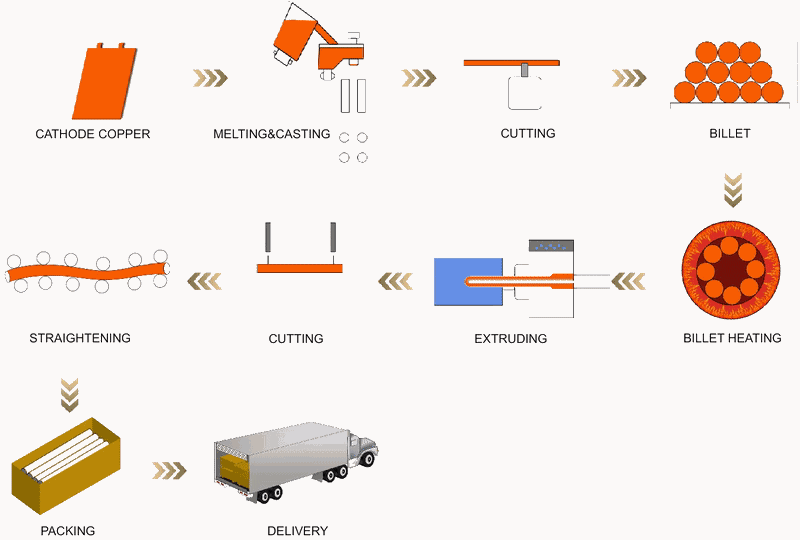

Drawn pipe/tube(big)
Typical Uses
Commonly used in the manufacture of heat transfer equipment (such as condenser, etc.), but also for oxygen equipment in the assembly of low temperature piping. Small diameter brass is often used to transport pressure of the liquid (such as lubrication systems, hydraulic systems, etc.) and for the instrument of the pressure pipe.
Please contact one of our knowledgeable sales staff to help you with your Copper needs.
Request a Quote
You can contact us by E-mail or other ways.We will respond You in 24hours.
