C46400 bar

C46400 bar

Naval Brass is used extensively in marine construction due to its high corrosion resistance to seawater It is known for its good strength, good rigidity/hardness and resistance to wear, fatigue, galling and stress cracking. Also recognized for superior tensile strength, higher yield strength, good elongation, excellent thermal conductivity, good capacity for being cold worked, excellent capacity for being hot formed and excellent soldering and brazing

Length : 500~5000MM

OD : 6-220 MM

MOQ : 1MT

Properties



Alloy

Products

shape

Temper

Size

OD.

Length     (mm),max.

C46400

Extruded bars

round

R

10-220

Diameter (or margin)≤50 L1000~5000
Diameter (or margin)50~75 L500~5000
Diameter (or margin)>75~120 L500~4000

Diameter (or     margin)>120 L300~4000。

square ,

hexagonal

10-120

Drawn bars

Round,

square ,

hexagonal

Y

6~60

Diameter (or   margin)≤50 L1000~5000
 Diameter (or margin)>50~85 L500~5



Chemical Composition

Alloy

Chemical Composition

Cu

Fe

Pb

Sn

Other Elements

C46400

59.0-62.0

0.1

0.2

0.5-1.0

-

HSn62-1

61.0-63.0

0.1

0.1

0.7-1.1

0.3



Temper

shape

Diameter (or margin)

Tensile Strength Rm/ (N/mm2)

Elongation A/ % min

Y2

Round,

square ,

hexagonal

4~40

≥390

17

40~60

≥360

23

R

-

≤120

≥365

22





Features

1) Good wear resistance

2) Excellent corrosion resistance

3) High intensity

4) Hot Forging performance

5) Good cutting performance

6) Self-lubricating performance

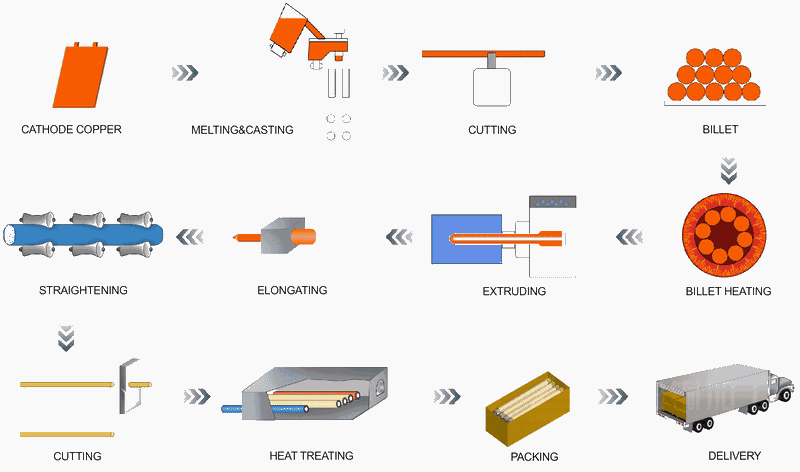

Drawn  rod/bar

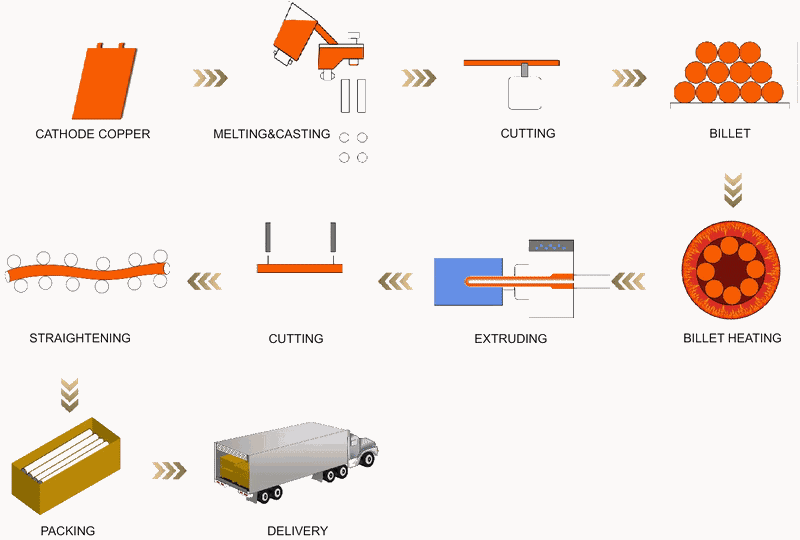

Extruded  rod/bar



Typical Uses

Naval Brass presents a high corrosion resistance to seawater, making it a top candidate for industrial and marine atmosphere jobs. It offers excellent properties for being hot worked, while also keeping the ability to be moderately cold worked.

Please contact one of our knowledgeable sales staff to help you with your Copper needs.
