C10200 rod

copper rods can be used in a wide range of applications such as forged fittings for the sanitary industry, for lock barrels and for machined parts in mechanical engineering

Length : 500-5000 MM

OD : 16-300 MM

MOQ : 1 MT

Live Chat Leave Message

Properties

chemical Composition

Alloy

Chemical Composition (％)

C10200

Cu+Ag

^Ag

≥99.97

0.002

—

0.001

0.002

0.004

0.002

0.003

0.002

0.004

0.003

0.002

Product	Alloy	shape	Temper	SIZE
				OD.	Length (mm)
Extruded rod	C10200	Round	R	16-300	OD≤50 L1000-5000 OD:50-75 L500-5000 OD＞75-120 L500-4000 OD＞120 L300-4000
		square , hexagonal		16-120
Drawn rod	C10200	Round,	M, Y	6-80	OD≤50 L1000～500 OD＞50-80 L500～5000
		square , hexagonal		8-60

Features

1) Good wear resistance

2) Excellent corrosion resistance

3) High resistance to high temperature, high pressure

4) Good cutting performance

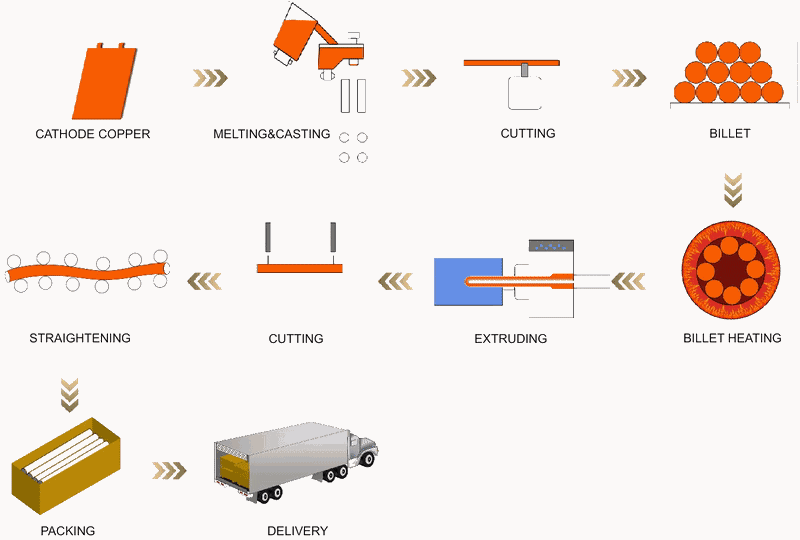

Extruded rod/bar

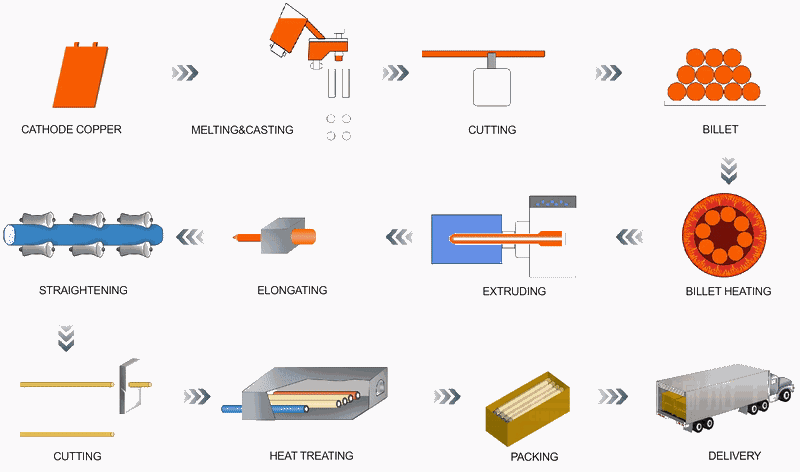

Drawn rod/bar

Typical Uses

Electrical conductivity and thermal conductivity of copper is second only to silver, widely used in the production of conductive, thermal conductivity apparatus.Copper in the atmosphere, water, and some non oxidizing acid have good corrosion resistance, used in the chemical industry.
